21 Aug The Wow Factor: Why LED Video Walls Command Attention

A 55″ flat-screen display is functional. A 10m × 6m LED video wall is unforgettable. LED video walls deliver visual impact that captures attention instantly. They’re deployed in:

• Corporate receptions and brand showcases – making a premium first impression
• Retail flagship stores – creating immersive shopping experiences
• Event venues and conference spaces – commanding audience focus during presentations
• Arenas and hospitality – live scoring, sponsor content, and entertainment
• Digital art installations – museums, galleries, and public spaces

The technology has matured dramatically. Where LED displays were once grainy and visible from a distance, modern installations deliver cinematic clarity even up close.

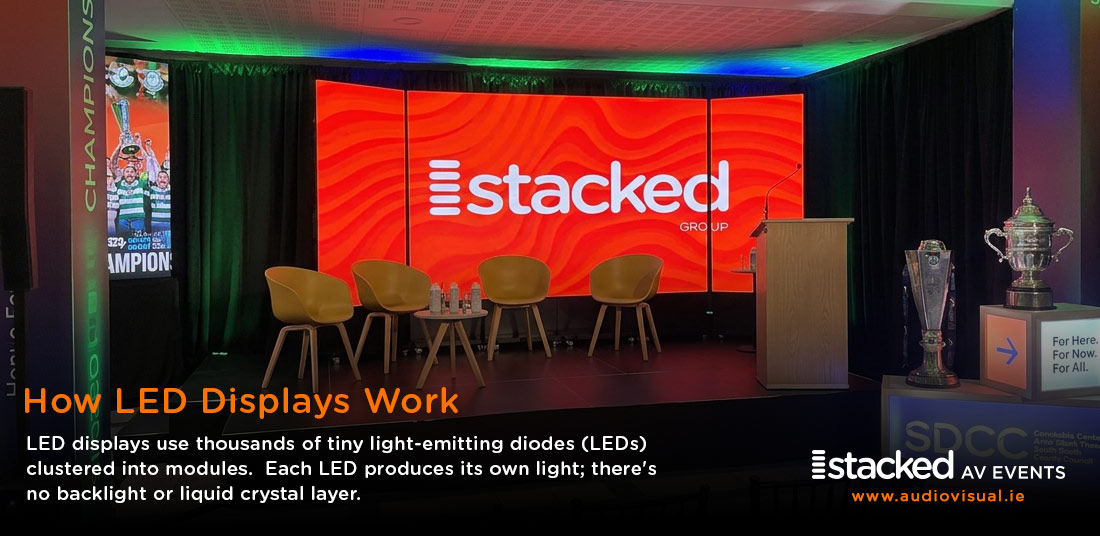

How LED Displays Work

Unlike LCD screens (which have a backlight shining through pixels), LED displays use thousands of tiny light-emitting diodes (LEDs) clustered into modules. Each LED produces its own light; there’s no backlight or liquid crystal layer.

Key advantages:

• Brightness: 1,000–5,000+ nits (far exceeding LCD)
• Seamless: No bezels (borders) between modules; the eye perceives one continuous image
• Longevity: LED panels degrade slowly; brightness gradually diminishes over thousands of operating hours
• Outdoor capability: Native outdoor operation (brightness handles direct sunlight)

Pixel Pitch: The Critical Specification

Pixel pitch is the distance between LED pixels, measured in millimetres. Common sizes:

• 6 – 2.6mm pitch, excellent clarity up close, viewing distance 2m–30m (premium indoor retail, museum installations)
• P3 – 3mm pitch, sharp image, viewing distance 3m–40m (corporate reception, high-end retail)
• P4–P5 – 4–5mm pitch, good at distance, viewing distance 5m–50m (conference stages, venue screens)
• P6–P8 – 6–8mm pitch, designed for distance viewing, viewing distance 10m–80m+ (arenas, large events, outdoor façades)
• P10+ – 10mm pitch and larger, maximum distance viewing (sports stadiums, outdoor billboards)

The rule of thumb: Viewing distance should be at least 1.5–2x the pixel pitch. A P3 display (3mm pixels) looks sharp from 6m away but pixelated from 1m.

Resolution and Practical Considerations

LED walls are often lower resolution than LCD displays, but this is by design. A P4 display at 1280 × 720 pixels looks sharp at 5m+ distance; attempting to read small text from 1m would be futile (and unnecessary for its intended use).

Contrast this with a reception area where viewers approach within 1–2m: a P2.6 display is essential; anything coarser looks unrefined.

Installation and Structural Requirements for LED Walls

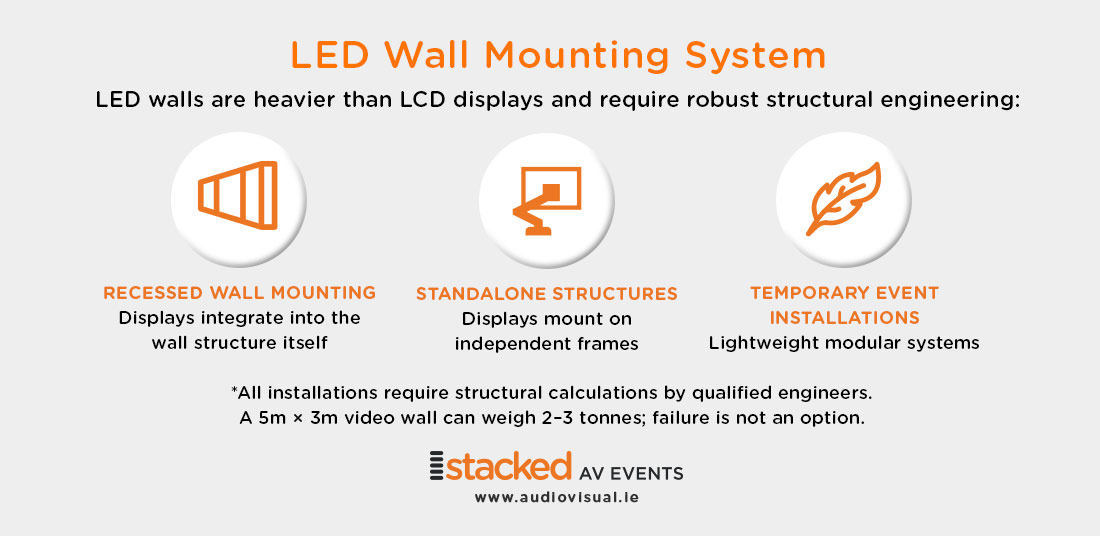

LED Wall Mounting Systems

LED walls are heavier than LCD displays and require robust structural engineering:

• Recessed wall mounting – displays integrate into the wall structure itself; requires reinforced framing and engineering sign-off
• Standalone structures – displays mount on independent frames (truss systems, aluminum scaffolding)
• Temporary event installations – lightweight modular systems, used for conferences and touring events

All installations require structural calculations by qualified engineers. A 5m × 3m video wall can weigh 2–3 tonnes; failure is not an option.

LED Display Power and Cooling

LED displays consume substantial power (150–300 watts per square metre, depending on brightness). Installations require:

• Dedicated electrical circuits with appropriate circuit protection
• Cooling systems (fans or liquid cooling) to manage heat dissipation, especially in sealed or enclosed spaces
• Backup power planning (for critical installations, uninterruptible power supplies or generator backup)

A 10m × 6m wall running at full brightness consumes 9–18 kilowatts. Ensure your facility’s electrical infrastructure supports this.

Network and Control

LED displays integrate with control systems allowing:

• Remote content management (push content from anywhere)
• Playback of video, still images, and live feeds
• Brightness and colour adjustment based on ambient light or scheduling
• Status monitoring (alerts if a module fails or overheats)

Modern systems support HDMI, DisplayPort, or network feeds (allowing content from media servers, live feeds, or cloud platforms).

Real-World Applications for LED Walls

Corporate Reception: A professional services firm installed a 6m × 3m P3 LED video wall in their Dublin headquarters reception. The wall displays company achievements, client testimonials, and welcome messages for visitors. During events, it showcases presentations or live social media feeds. The clarity and scale create an immediate premium impression.
Result: improved perception of the firm’s scale and modernity; frequently complimented by visitors and clients.

Conference and Event Venue: A hotel deployed a 8m × 4.5m P4 video wall on its main conference stage. The wall supports presentations, live speaker feeds, and sponsor content. A networked control system allows event staff to manage playback without IT.
Result: clients choose the venue partly for the display capability; the wall commands full attention during presentations.

Broadcast studio: A media company installed a 10m × 5.6m LED wall (P3.9 pitch) as a studio backdrop. The wall displays graphics, video content, and live feeds with broadcast-quality clarity. The seamless LED surface (no visible bezels) provides a cinematic backdrop that photographs and records beautifully.
Result: improved production value and flexibility (any background content possible, no physical set construction).

Hospitality reception: A 5-star hotel uses a 5m × 2.8m LED wall in its atrium to welcome guests, showcase amenities, and promote events. Brightness automatically adjusts based on ambient daylight. During quiet periods, the wall displays ambient content (nature scenes, brand imagery); during check-in rush, it shows welcome messages and service information.
Result: creates an impressive first impression and reduces front-desk enquiries.

Content Strategy for LED Walls

LED displays shine with dynamic content:

• Looping videos – brand films, ambient content, product showcases
• Live feeds – social media, event feeds, broadcast content
• Real-time data – stock prices, weather, event schedules
• Interactive content – responsive displays that engage audiences

Design for the Viewing Distance

Content design differs dramatically based on how close viewers are:

• Reception/close-range (1–3m): High-resolution content, readable text, fine detail visible
• Mid-range (5–10m): Bold graphics, large text, clear focal points
• Distance viewing (20m+): Extreme simplicity, massive text, colour contrast

Poor content design (tiny text, overcrowded layout) ruins the impact. Invest in professional content creation.

LED Display Brightness Management

While LED displays can run at full brightness all day, this:

• Consumes more power (cost and environmental impact)
• Reduces panel lifespan
• Causes eye strain in dark environments

Smart brightness scheduling adjusts output based on time of day and ambient light, balancing visual impact with efficiency.

Common Pitfalls with LED Walls

1. Wrong pixel pitch for use case: Choosing P6 (suitable for stadium viewing) for a corporate reception looks pixelated up close. Conversely, specifying P2.6 for a 30m+ distance venue is expensive overkill.
2. Underestimating power requirements: LED walls draw substantial current. Facilities without dedicated circuits experience voltage drops, dimming, and potential safety issues.
3. Poor content planning: A video wall that plays generic brand animations becomes invisible wallpaper. Plan engaging, regularly updated content.
4. Inadequate structural engineering: LED walls are heavy. Installing without proper calculations risks catastrophic failure and liability.
5. Ignoring thermal management: Without adequate cooling, displays throttle brightness automatically on hot days—precisely when you want maximum impact.
6. No backup strategy: If control systems fail, what displays? Plan for manual feeds or failover content.

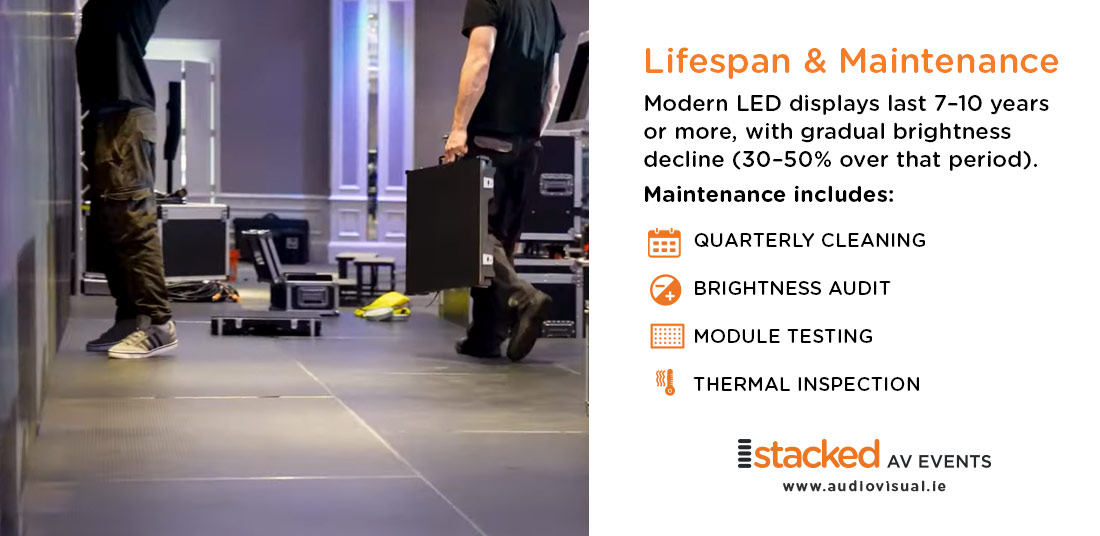

Lifespan and Maintenance

Modern LED displays last 7–10 years or more, with gradual brightness decline (30–50% over that period). Maintenance includes:

• Quarterly cleaning – dust accumulates on the display surface; professional cleaning preserves brightness and colour accuracy
• Brightness audits – measure output every 6–12 months; plan for panel refurbishment or replacement if brightness falls below acceptable levels
• Module testing – if individual LED modules fail, they’re swapped out (video walls are modular by design)
• Thermal inspection – ensure cooling systems function properly

Professional maintenance contracts ensure your display stays performing at peak for its entire lifespan.

Getting Started With LED Displays

1. Define your objective: First impression? Event support? Brand experience? Product showcase?
2. Determine viewing distances and angles: This drives pixel pitch selection
3. Plan content strategy: What will display? How often will it update? Who manages content?
4. Assess infrastructure: Power availability, structural capacity, network connectivity
5. Engage structural engineers: LED walls aren’t DIY; professional design is essential
6. Plan installation and commissioning: Staged deployment minimises business disruption
7. Train content management: Your team needs to confidently update and troubleshoot
